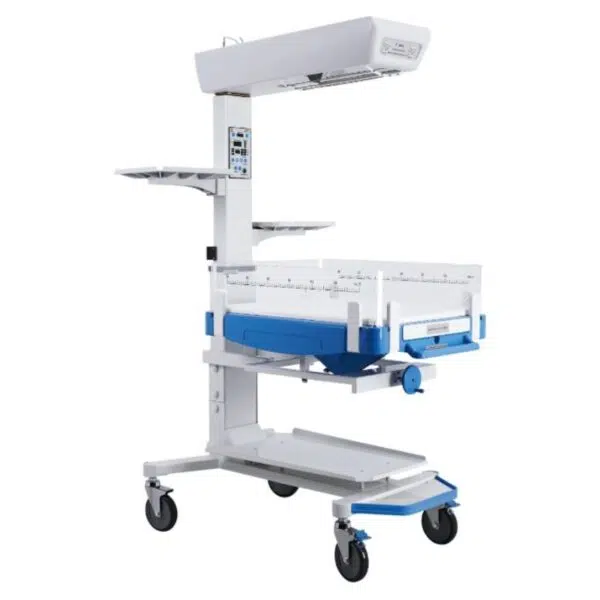

DAVID HKN-93 RADIANT WARMER

• Three control Modes: Pre-warm Mode, Manual Mode and Baby Mode control by micro-computer
• Set Temperature and Baby Temperature can be displayed separately
• Horizontal angle of warmer module and inclination of the bassinet can be adjusted
• The panels surrounded bassinet can be turned outward or disassembled
• X-ray cassette under the bassinet
• APGAR timer
• Multiple failure alarm indications
• RS232 connector for data output



Description

• Optional Configuration
Disposable skin temperature sensor, Vertical height adjustment (VHA) stand, Weighing system and Sp02.

• Standard Configuration
HKN–93:
Warmer module, bassinet, main column, mobile stand, controller, I.V. Pole and tray.
HKN-93B:
Based on HKN-93, plus the phototherapy unit.
HKN-93A:
Based on HKN-93B, plus the breath resuscitation bag, infant head fixing unit, the oxygen supplying set (the oxygen cylinders, buoy type oxygen regulator, wall type oxygen regulator), low-pressure suction.

• Environmental Requirement
Operating range: 18C-30C Ambient air velocity rate: <0.3 mis

Specification :
• Power requirement:
AC220V-230V /50Hz or AC 110-120V /50-60Hz, 700VA (HKN-93)
AC220V-230V/50Hz or AC110-120V/50-60Hz, 750VA (HKN-93B / 93A)
• Control Mode: Pre-warm Mode, Manual Mode and Baby Mode are controlled by micro-computer
• Baby Mode temperature control range: 34.5C-37.5C
• Skin temperature display range: 5C-65C
• Accuracy of skin temperature sensor: ± 0.2’C
• Temperature uniformity of mattress: <2C
• Angle of heater head: 0° ,30° ,60° ,90° for two ways
• Inclination of the bassinet: ±10°
• APGAR timer: audible and visible alarm when the device runs to 50° -1′ . 44” 50° -5′ 9′ 50 – 10′
• Failure alarm: over temperature alarm, deviation alarm, sensor failure alarm, power failure alarm, setting alarm, checking alarm and so on.
• The total irradiance Ebi on the effective surface area: => 0.66mW/cm2 (HKN-93B / 93A)
• Average value of general bilirubin radiation on the mattress effective range: >0.58mW/cm? (HKN-938 / 93A)
• Bilirubin uniformity of radiating on the mattress effective range: >0.4 ( HKN-93B / 93A)
• Dominant wavelength of blue light: 420-470nm

Model: DAVID HKN-93
Brand: DAVID
