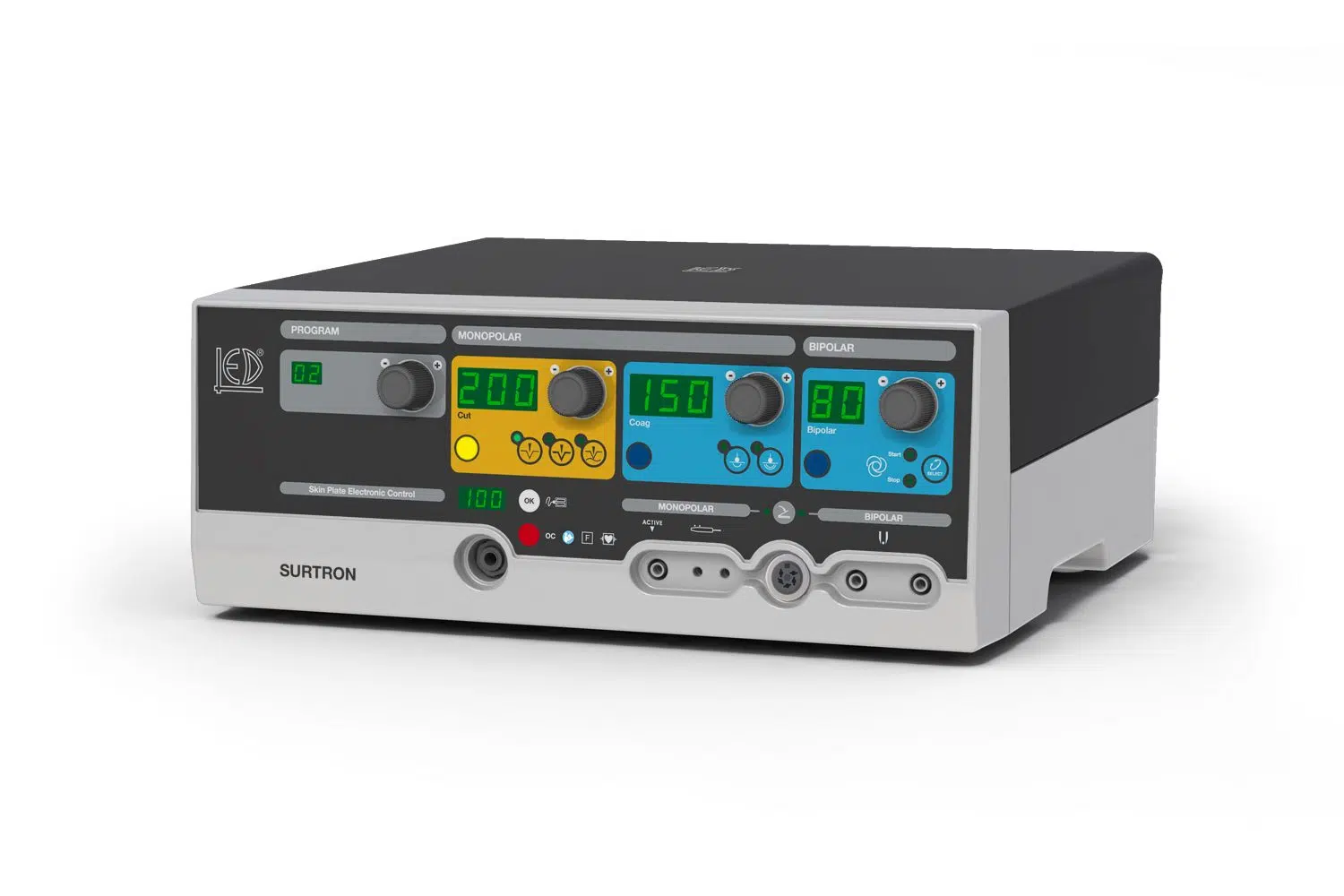

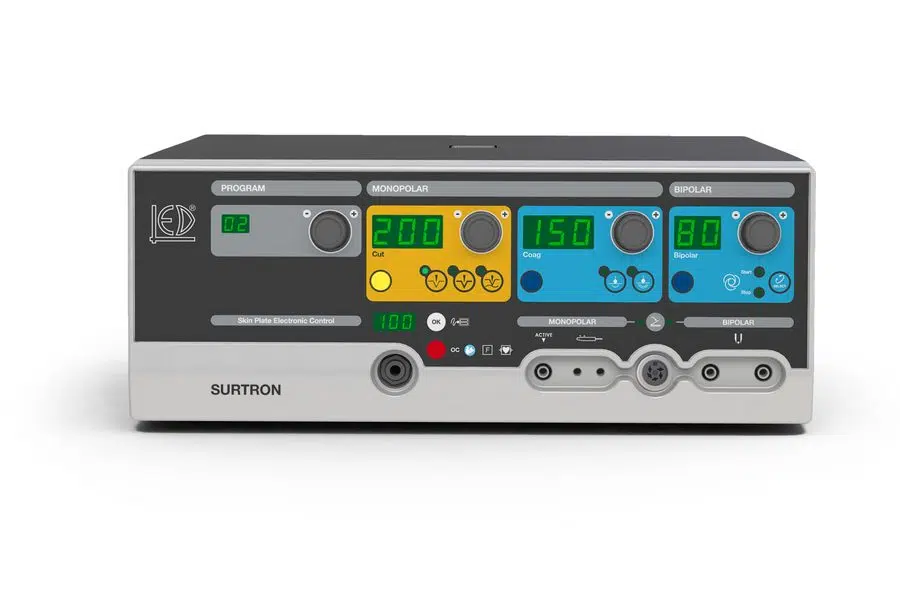

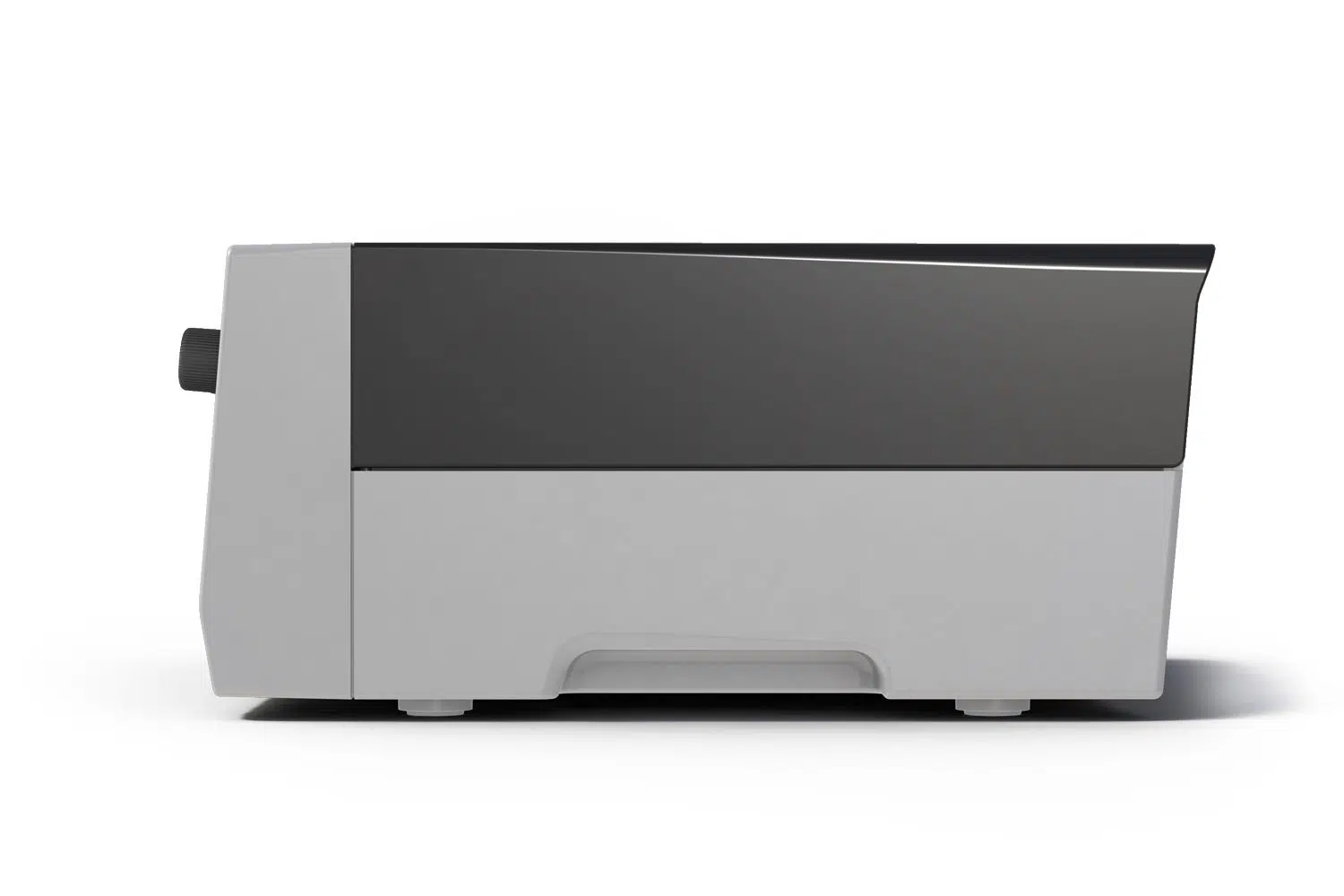

SURTRON 200/400

SURTRON 200 is a high frequency electrosurgical equipment which is suitable to light and medium surgery.

SURTRON 200 allows to execute surgical minimally invasive procedure of resection, evaporation and coagulation.

Through its performances, SURTRON 200, allows pure CUT, cut-coagulation BLEND, incision with reduced prodution of eschar ENHANCED, superficial coagulation FORCED COAG, deep coagulation in absence of necrosis SOFT COAG and BIPOLAR coagulation.

The digital reading of the delivered power and the overseeing through microcontroller of the operational functions, assure the absolute reliability of the conditions of job.



Description

SURTRON 200 allows a highly professional surgery thanks to the user-friendly and safety solutions normally used. The connection of neutral electrode is constantly monitored. Safety control of patient/plate contact using split neutral electrode. The possibility to control by the handle the output functions as well as the delivery of output power, allows to implement the surgical operation without turning away the surgeon attention from the surgical field.

FEATURES
Code 10100.401
Max output power CUT 200W – 250Ω
Max output power ENHANCED 120W – 250Ω
Max output power BLEND 120W – 200Ω
Max output power FORCED COAG 150W – 150Ω
Max output power SOFT COAG 90W – 100Ω
Max output power BIPOLAR COAG 80W – 50Ω
Working frequency 600 kHz
Patient circuit F
Mains voltage 115-230 Vac
Mains frequency 50-60 Hz
Electrical input power 350 VA
Size WxHxD 370x144x319 mm
Weight 6 Kgs

CONTROLS
Patient/Plate circuit monitoring
Output power monitoring
Self check control

SAFETY
EN60601-1
EN60601-1-2
EN60601-2-2
Electrical classification: CF
MDD 93/42 / EC: II b
