Description

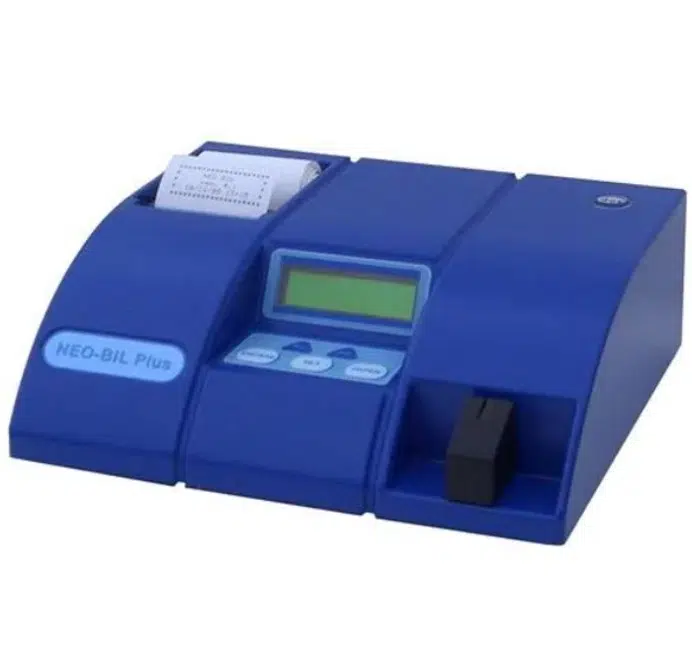

A precise sample measurement of both bilirubin and interferential on the same point of the capillary is carried-out by a special reading system. The reading is carried out even on a small quantity of serum. No reagents are required. NEO BIL is equipped with a built-in printer for the result of sequential printing.
Technical Features:
– Intended use – Measurement Of Neonatal total bilirubin
– Sample – centrifuged whole body
– Serum – Minimum Volume: 10ul
– Reading cuvette – Haeparinized Haematocrit capillary
– Measure Unit – mg/dl or umol/l
– Measure system – photometric
– Measurment Range – 0-30mg/dl or 0-510 umol/l
– Sample Reading – On the singe point of the capillary
– Zero and Checking – Completely Automatic
– Interfering Substances – Automatically Compensated
– Reading Time – 10s approximately even or high haemolyzed sample
– Detector – Silicon Photodiode
– Optical Filters – 455 and 575 nm
– Keypads – 5 keys
– Display – 2 lines with 16 Columns
– Printer – 20 Columns with thermal paper
– Interface – UCB Port
– Weight – 2.8 kg
– Power Requirement – 110-260VAC, 50-60HZ, 25 w
