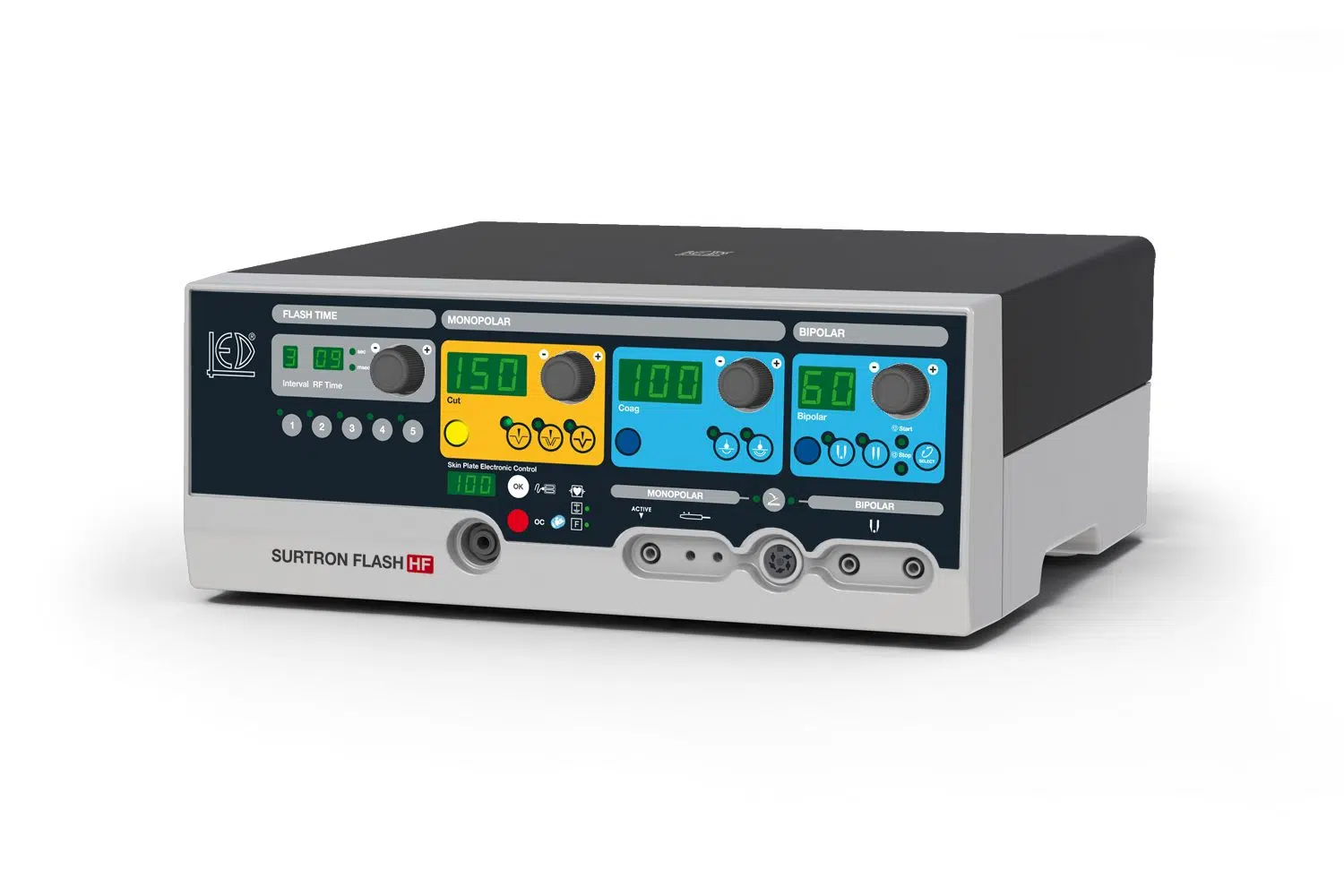

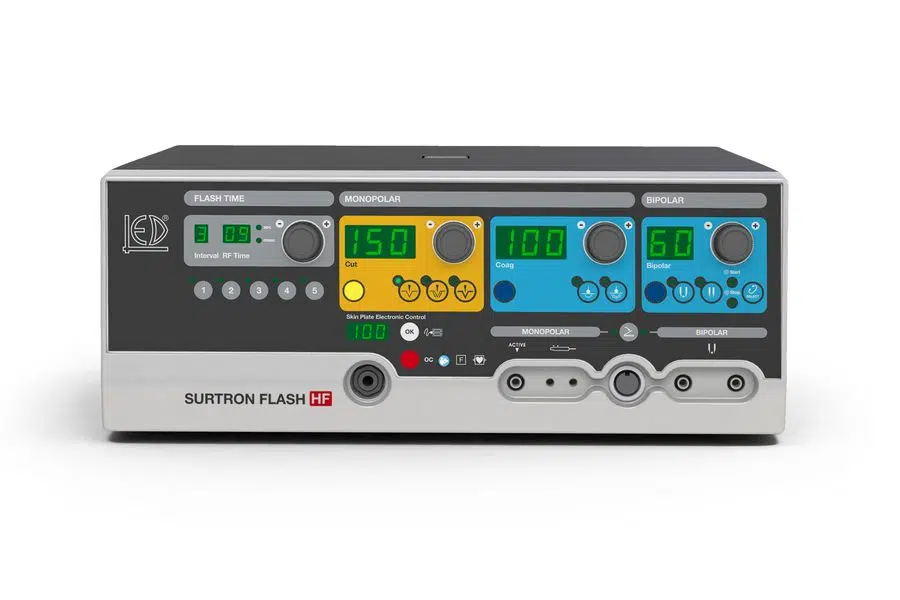

SURTRON FLASH 160HF is a High Frequency RadioSurgical equipment which is suitable to precision monopolar and bipolar surgery and micro-surgery without tissue alterations.

SURTRON FLASH 160HF can supply RF operative powers either for programmable time as short as hundreds of a second.

Through its performances, SURTRON FLASH 160HF, allows pure CUT, cut-coagulation BLEND, incision with reduced prodution of eschar ENHANCED, superficial coagulation FORCED COAG, deep coagulation in absence of necrosis SOFT COAG, BIPOLAR coagulation and ABLATION.

The digital reading of the delivered power and the overseeing through microcontroller of the operational functions, assure the absolute reliability of the conditions of job.



SURTRON FLASH 160HF allows a highly professional surgery thanks to the user-friendly and safety solutions normally used.

The connection of neutral electrode is constantly monitored. Safety control of patient/plate contact using split neutral electrode. The possibility to control by the handle the output functions as well as the delivery of output power, allows to implement the surgical operation without turning away the surgeon attention from the surgical field.

Code 10300.201
Max output power CUT 150 W-500 Ω
Max output power BLEND 100 W-500 Ω
Max output power ENHANCED 100 W-500 Ω
Max output power FORCED COAG 100 W-150 Ω
Max output power SOFT COAG 80 W-100 Ω
Max output power BIPOLAR COAG 60 W-50 Ω
Working frequency 60 W-100 Ω
Working frequency 600 KHz – 4.0 MHz
RF power pulse emission time 10 ms – 30 sec
RF power pulse interval 1 – 9
Patient circuit F
Selectable input voltage 115 – 230 Vac
Mains frequency 50 – 60 Hz
Electrical input power 350 VA
Size WxHxD 370x144x319 mm
Weight 6 Kgs

Control Plate Circuit / OC patient
Control of the emitted power

Electrical classification: CF
MDD 93/42 / EC: II b
